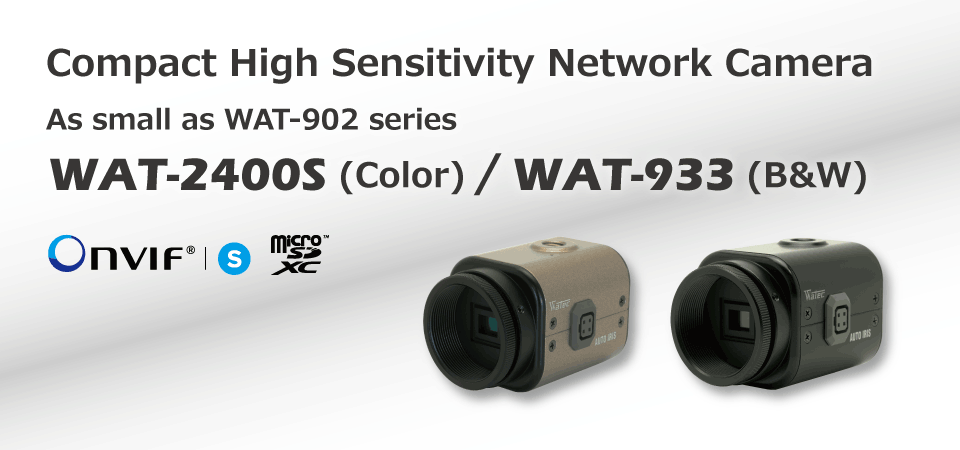

  　Network Camera, as small as the WAT-902 series　

  　Network camera, supporting Full HD・PoE, as small and light as the WAT-902 series.
　Appling the 1/2.8" BSI CMOS image sensor enables high resolution and competitive high sensitivity to
　our analog cameras.
　
    ■Resolution Comparison

  SD (WAT-250D2)   Full HD (WAT-2400S)
  　 　

   ■Sensitivity Comaprison 　*Environment: Illumination approx. 0.2 lx

  WAT-902H3 SUPREME   WAT-933




Approx.
Fivefold
  Minimum Illumination：0.0005 lx    Minimum Illumination：0.0001 lx

  　Supporting microSD

  　It is able to keep recording by the stand-alone without the network connection.
　Easy to find, playback and write to PC the recorded video.
   　■Recommended Specification
　　･SDXC / SDHC standard
　　･MLC type
　　･Speed Class CLASS 10 or more
　　･Capacity of 256GB or less
  　■Record video 24 hours
　 　Setting (with the recommended 128GB microSD)
　　･1080/30p
　　･Bitrate: 10Mbit/s
　　･H.264 compressed
　　*The recording time is extendable by settings.


  　Video output quick start-up

  　Shortened 80%! Starting quickly compare with the WAT-2400.


WAT-2400S / WAT-933 WAT-2400
Approx. 6 sec.　 Approx. 30 sec.


  　Power-saving Design

  　Reduced 65%! A large reduction in power consumption compare with the WAT-2400.


WAT-2400S / WAT-933 WAT-2400
 　 　PoE：2.40W/50ｍA
DC+12V：1.80W/150ｍA		  　 　 PoE：5.6W/127ｍA
DC+12V：5.4W/450ｍA


  　Pick up sounds

  　The internal microphone enables not only the surveillance and monitoring but also the audio recording.
　Able to check the situation at the camera location where cannot be seen.
　The external microphone connection is available for the clearer audio recording.


  　Options
  　This product exerts the optimum performance with our recommended options.
　Please contact our distributors or dealers. Variety of options are available. >>More Options

  VARIOUS LENSES    SWI12-12-N-P5


We offer lenses maximizing the
performance of the camera.



A power supply adaptor (DC+12V)
supporting the camera.



  CB-06    CB-07


Utilize when connecting the LINE
　 output.


Utilize when connecting the MIC.
which is a plug-in power type.


  30CMA-R   MS50


This lens mount adaptor is used to
convert a CS-mount to a C-mount.



With the coupler structure, the camera
can be adjusted to any desired angle.
